Structural characteristics of OBD2 16PIN 90 ° bent pin female connector

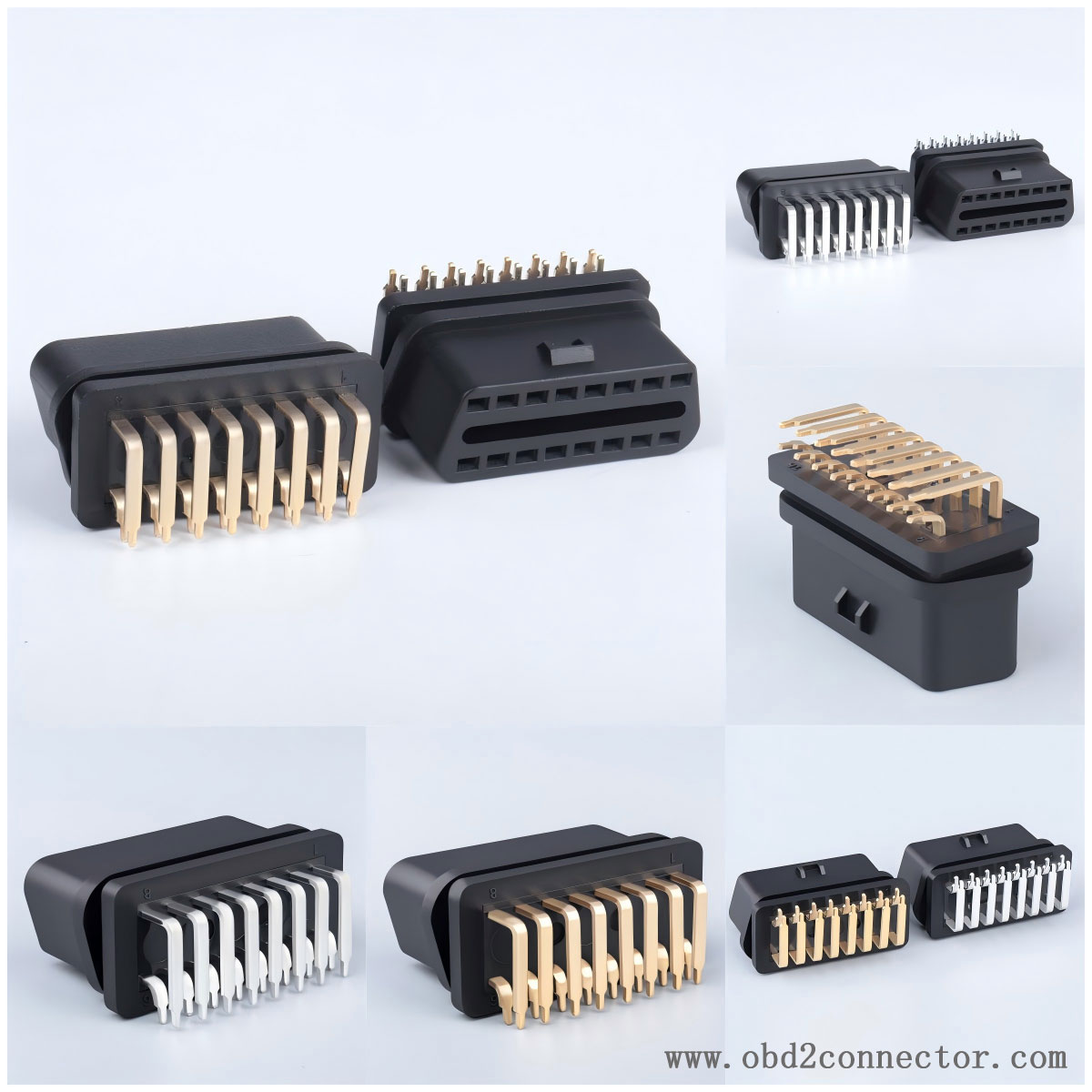

The OBD2 16PIN 90 ° bent pin female connector is an important component in automotive diagnostic systems, used to be fixed at the vehicle end and used in conjunction with the male connector of external diagnostic equipment. The following are the structural characteristics of the connector
Right angle design
The plug and cable are bent at a 90 ° angle, saving space and suitable for installation in compact areas inside the vehicle (such as under the driver's seat or near the dashboard), avoiding interference between the cable and other components.
16 pin configuration
Following the OBD2 standard protocol, the pin definitions are clear (such as power supply, grounding, data transmission, etc.) to ensure compatibility with diagnostic equipment.
Material and process
The shell is often made of engineering plastics or metal materials, which have temperature and corrosion resistance characteristics; The internal pins are usually made of gold-plated or silver plated copper alloy to enhance conductivity and corrosion resistance.
