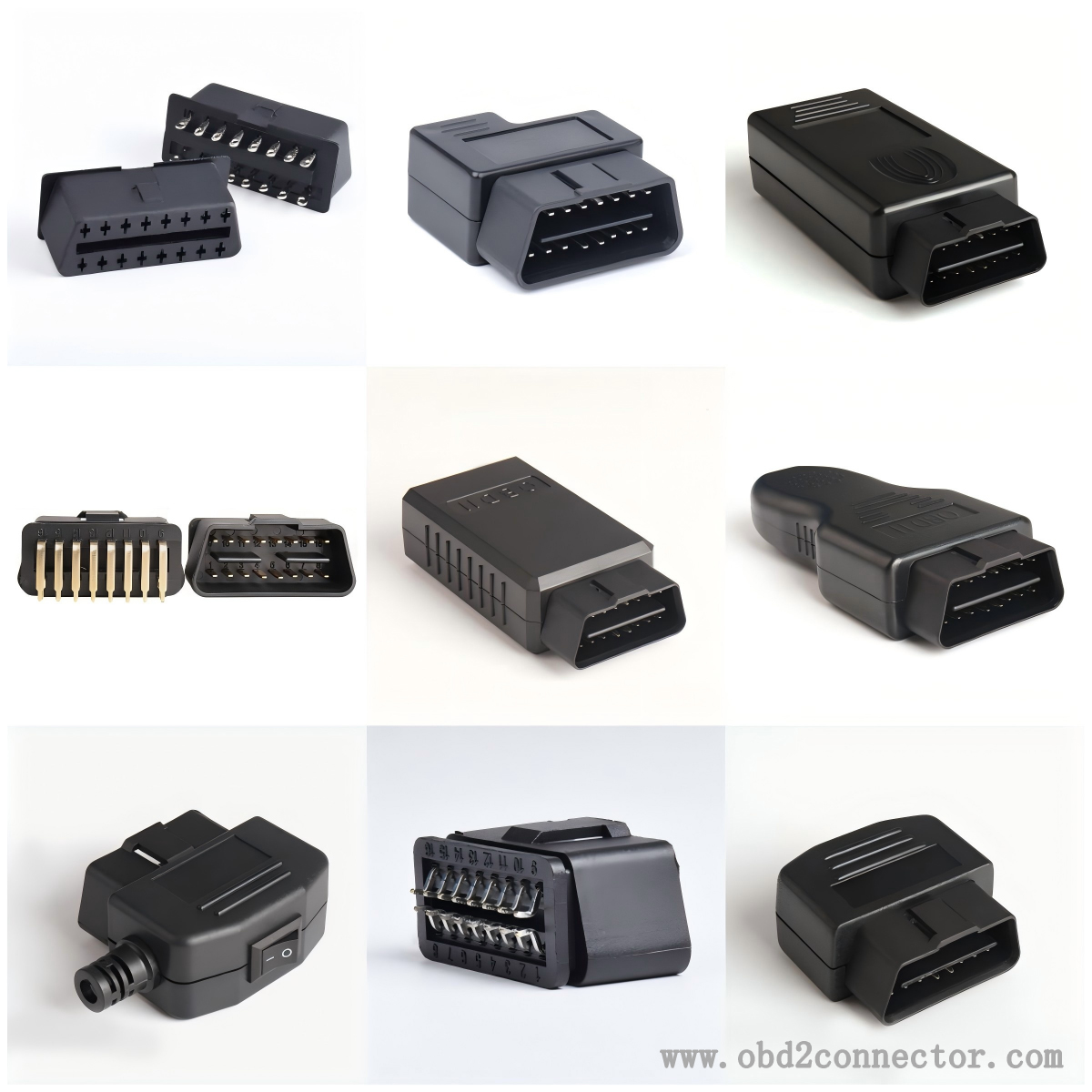

What is the installation method of the right angle OBD2 male connector?
Installation and connection operation of right angle OBD2 male connector
Align interface: Carefully align the pins of the right angle OBD2 male connector with the socket of the vehicle OBD2 interface to ensure that their positions match perfectly. Pay attention to the direction and angle of the connector. Generally, the right angled part should face in a direction that facilitates cable layout and does not affect other components.
Insertion connection: After confirming the alignment is correct, gently insert the male connector into the OBD2 interface of the vehicle, keeping it stable and vertical during insertion to avoid bent or damaged pins. During the insertion process, a certain amount of resistance may be felt, which is a normal phenomenon. However, if the resistance is too high, do not forcefully insert, but check for alignment or foreign object obstruction.
Ensure stable connection: After inserting into place, check whether the connector and interface are tightly connected without looseness or gaps. Some connectors may require rotation or pressing at a certain angle to achieve locking. Follow the instructions for using the connector to ensure a secure and reliable connection.
Fixed and organized
Fixed connector: If the connector has fixing screws or buckles, use the corresponding tools to fix it to the vehicle. Ensure that the fixing screws are tightened, but do not apply excessive force to avoid damaging the components around the connector or vehicle interface. If it is a buckle type fixation, check whether the buckle is fully tightened.
Organize cables: Organize the connected cables to avoid entanglement or friction with other components. Cable ties or clamps can be used to secure cables in the appropriate position, keeping the wiring neat and beautiful, while preventing cables from loosening or being damaged due to vibrations during vehicle operation.
Testing and Inspection
Functional testing: After the connection is completed, connect the matching equipment (such as diagnostic instrument, on-board computer, etc.) to the right angle OBD2 male connector, turn on the vehicle ignition switch, and check whether the equipment can read vehicle data normally, such as engine speed, vehicle speed, fault codes, etc. If the device can work normally and obtain accurate data, it indicates that the connector is installed correctly and communication is normal.
Appearance inspection: Recheck the connection between the connector and the vehicle interface to ensure that there is no looseness, deformation, or abnormal situation. Observe whether there are any abnormal phenomena such as leakage or smoking around the connector. If there are any problems, disconnect the connection in a timely manner and conduct troubleshooting.
