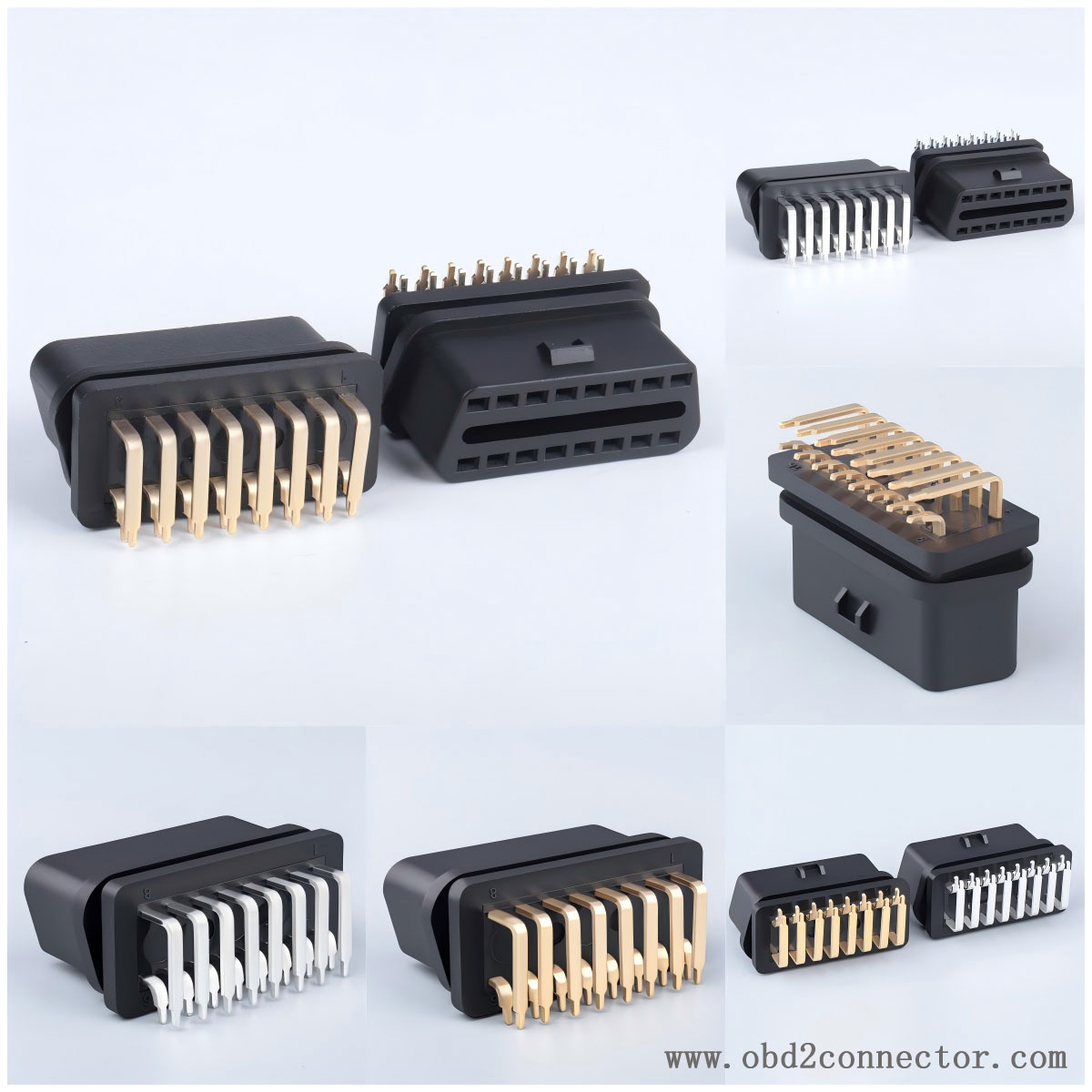

Function and application of OBD2 16PIN 90 ° bent female connector
Function of OBD2 16PIN 90 ° bent pin female connector:
Data Interaction
As a bridge between vehicle ECU and diagnostic equipment, it supports operations such as reading fault codes, real-time data (such as vehicle speed and fuel consumption), and clearing fault codes.
Equipment power supply
Provide stable power to external devices through pin 16 (normal power) and pins 4/5 (ground).
Expansion
It can connect to onboard electronic devices such as driving recorders and tire pressure monitoring to achieve functional expansion.
Application scenarios
Automotive Maintenance and Inspection
Repair shops and 4S stores quickly locate vehicle faults by connecting diagnostic instruments through a female connector.
Vehicle production and modification
Used for the installation of new car factory inspection or modification equipment.
Special environment adaptation
Waterproof and dustproof models (IP67 and above) are suitable for harsh environments such as off-road vehicles and construction vehicles.
