The OBD2 (On Board Diagnostics II) connector is a key component of modern automotive diagnostic technology. Since its inception, the OBD2 connector has undergone continuous improvement and refinement, becoming an indispensable tool in fields such as automotive maintenance, emission testing, and fleet management.
The origin of on-board diagnostic (OBD) technology can be traced back to the 1960s, but early OBD systems did not form a unified standard, and various car manufacturers were developing their own diagnostic systems. These systems typically can only monitor limited vehicle parameters, and the definitions of communication protocols, diagnostic interfaces, and fault codes vary. This has led to compatibility issues with diagnostic equipment, making car repairs complex and expensive.
In order to address these issues, the Society of Automotive Engineers (SAE) began promoting standardization of diagnostic connectors and diagnostic test signals in 1979. In 1980, General Motors (GM) introduced a proprietary interface and protocol, marking the beginning of standardization in OBD technology. However, it was not until 1988 that SAE officially released the OBD-II standard, laying the foundation for the development of subsequent OBD2 connectors.

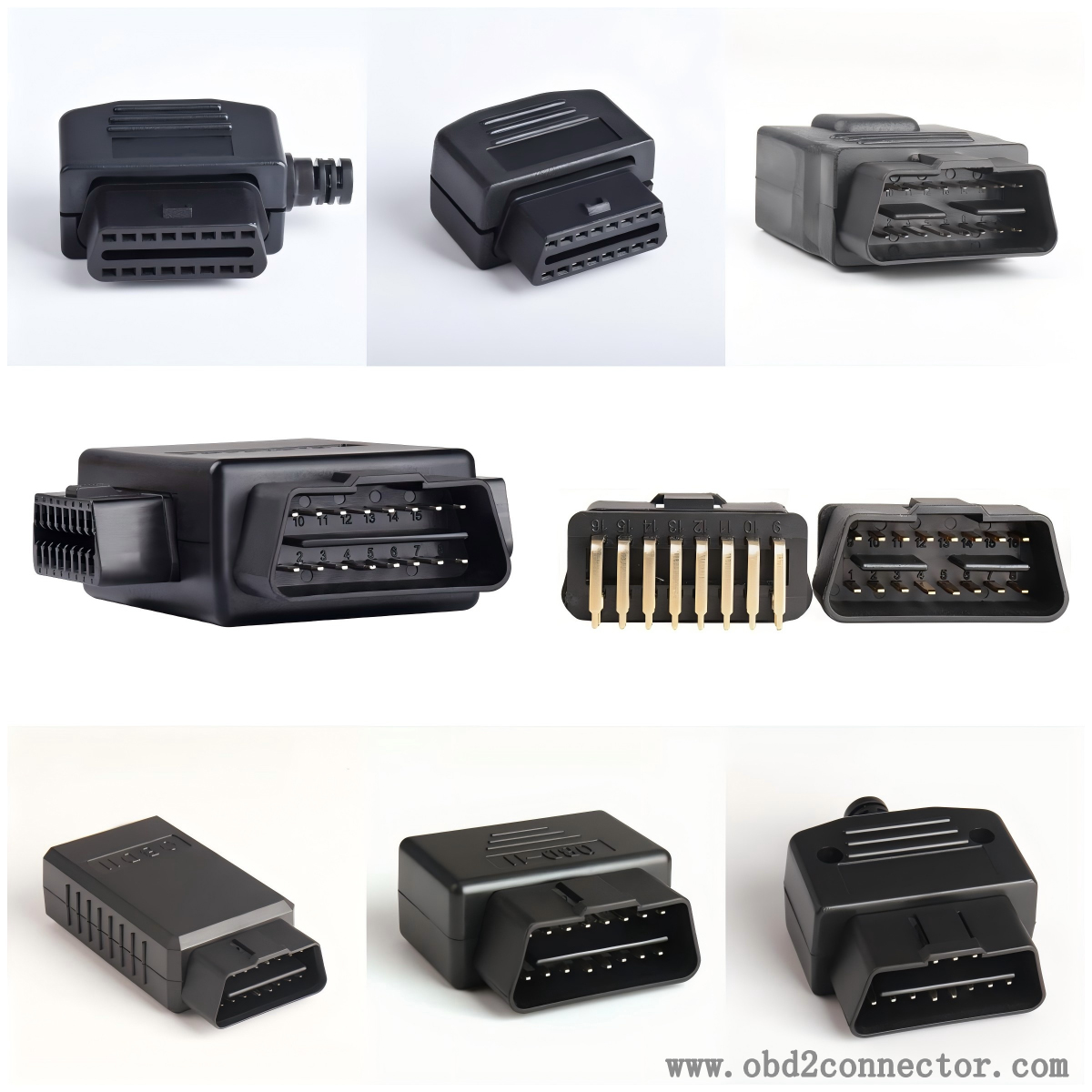

The introduction of the OBD-II standard marks an important turning point for in vehicle diagnostic technology. This standard specifies a unified diagnostic interface (i.e. OBD2 connector), communication protocol, and definition of fault codes, allowing vehicles from different manufacturers to use the same diagnostic equipment for diagnosis and maintenance. The OBD2 connector typically adopts a 16 pin design, including pins for power, ground, communication, etc., to ensure stable transmission of diagnostic data. With the globalization of the economy and the internationalization of the automotive industry, the OBD-II system has gradually become an internationally recognized diagnostic standard.
Technological progress and application expansion of OBD2 connector
With the popularity of OBD2 connectors, their technology is constantly advancing. Modern OBD2 connectors not only support multiple communication protocols (such as ISO 9141-2, ISO 14230-4, SAE J1850 PWM/VPW, and ISO 15765-4 CAN), but also can transmit richer vehicle data. This enables maintenance personnel to diagnose vehicle faults more accurately and improve maintenance efficiency.
At the same time, the application of OBD2 connectors is constantly expanding. In addition to traditional automotive maintenance and emission testing, OBD2 connectors are also widely used in fields such as fleet management, remote monitoring, and vehicle performance monitoring. By connecting the OBD2 connector, fleet managers can obtain real-time operational data of vehicles, including engine speed, vehicle speed, fuel consumption, etc., thereby achieving refined management of the fleet.
