In modern automotive technology, OBDII (On Board Diagnostics II) connectors have become an indispensable tool for vehicle diagnosis and maintenance. This standardized diagnostic interface not only improves the accuracy and efficiency of fault diagnosis, but also promotes the strict implementation of automotive emission standards. This article will explore several specific application cases of OBDII connectors in vehicle diagnosis to demonstrate their importance in modern automotive maintenance.
Overview of OBDII connectors

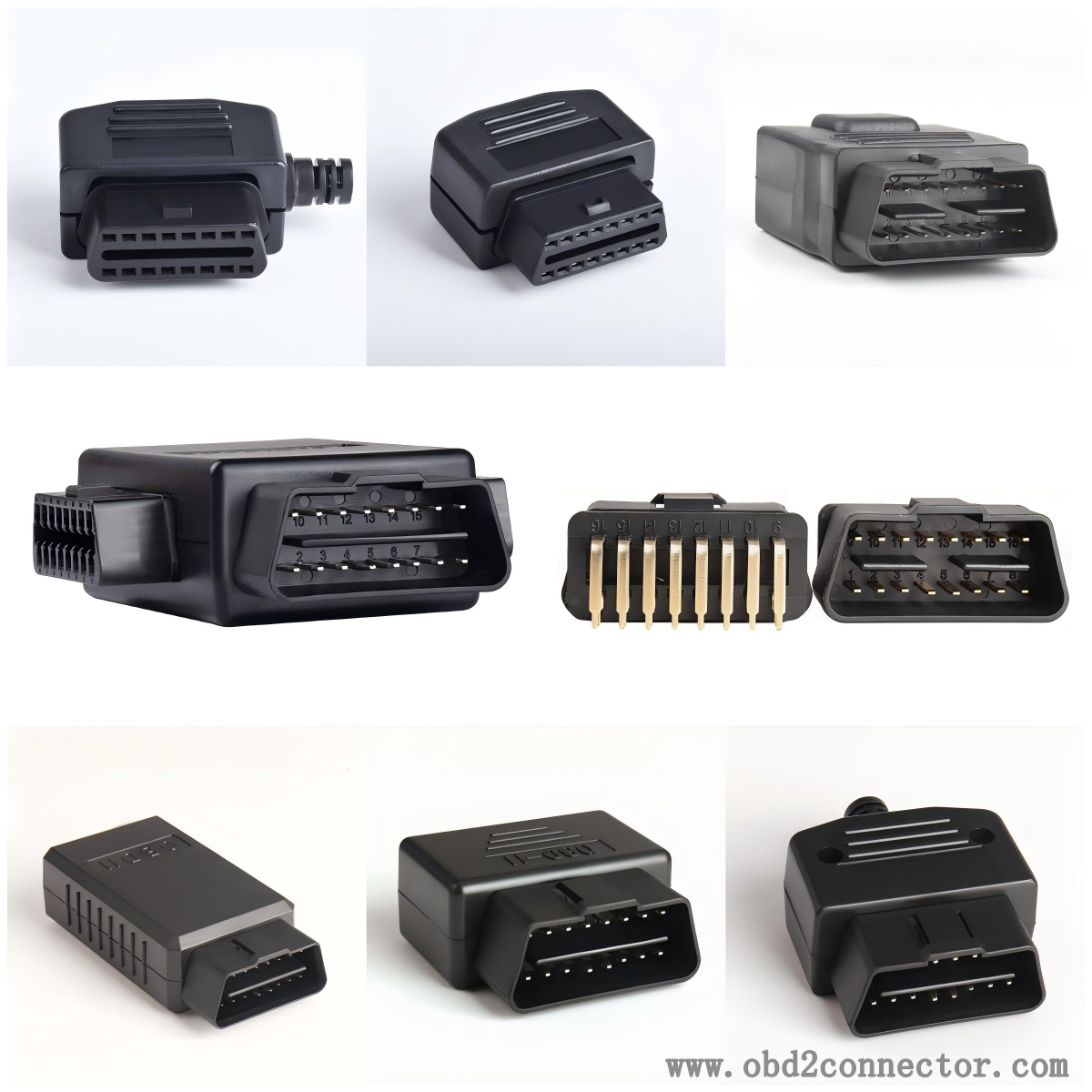

The OBDII connector is a standardized 16 pin socket located in an easily accessible position on the vehicle, such as under the driver's dashboard. This interface allows professional diagnostic equipment to connect to the vehicle's electronic control system (ECU), thereby reading fault codes, real-time operating data, and performing various system tests.
Application Case 1: Rapid Fault Diagnosis
When the vehicle's malfunction indicator light (MIL) lights up, maintenance personnel can quickly connect to the OBDII connector and use diagnostic tools to read the fault code. These fault codes are generated by the ECU based on abnormal conditions during vehicle operation, providing direct information about the location and nature of the fault. For example, if the engine control module detects an abnormal signal from the oxygen sensor, it will generate a corresponding fault code and light up the MIL. After the maintenance personnel read this fault code through the OBDII interface, they can immediately locate the oxygen sensor and conduct further testing and replacement.
Application Case 2: Emission Monitoring and Compliance Inspection
The OBDII system also plays an important role in vehicle emission monitoring and compliance checks. It can monitor the operating status of the engine and the performance of the emission control system in real time, ensuring that the vehicle meets the requirements of emission regulations. For example, during vehicle annual inspections, inspectors can connect to the OBDII connector to read emission related data to verify whether the vehicle meets current emission standards. If the vehicle has emissions exceeding the standard, the OBDII system will also record relevant fault codes to help maintenance personnel quickly locate and repair the problem.
Application Case Three: Performance Optimization and Data Analysis
The OBDII connector also supports the reading and analysis of real-time vehicle operation data, which is crucial for performance optimization and data analysis. Maintenance personnel can obtain key data such as engine speed, vehicle speed, and fuel consumption rate of the vehicle through the OBDII interface for performance evaluation and optimization. For example, when adjusting engine parameters or optimizing fuel economy, maintenance personnel can make precise adjustments based on these data. In addition, OBDII data can also be used for vehicle health management and preventive maintenance, by monitoring the operating status of key components, identifying potential fault risks in advance, and taking corresponding preventive measures.
Application Case Four: Remote Fault Diagnosis and Monitoring
With the development of technology, OBDII connectors also support remote fault diagnosis and monitoring. Some advanced diagnostic equipment can be connected to the OBDII interface via Bluetooth or wireless network to transmit vehicle data in real-time to a remote server for analysis. This means that maintenance personnel can diagnose and maintain vehicles without physically visiting the site.
