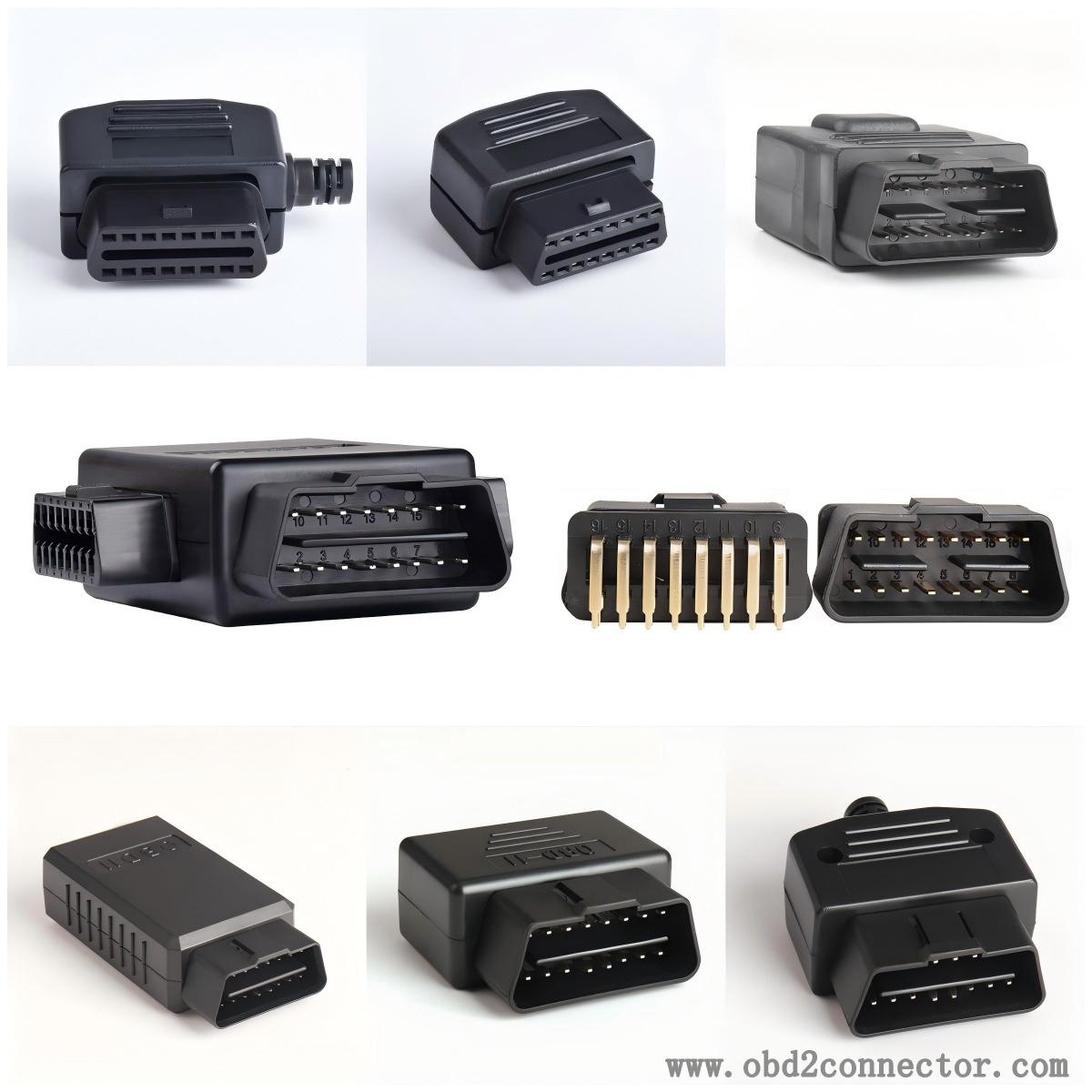

What are the common faults of OBDII male connectors?
The common faults of OBDII male connectors mainly include physical damage, electrical faults, connection problems, and performance faults. The following is a specific introduction:
Physical damage
Pin damage: Pins may bend or break due to external forces, which can easily occur during frequent insertion and removal or collisions. In addition, long-term use may cause wear and tear on the pins, leading to poor contact with the vehicle's OBDII interface.
Shell damage: The connector shell may rupture or deform due to compression, collision, or aging, which not only affects the appearance of the connector but also exposes internal pins, increasing the risk of short circuits, open circuits, and other faults, while also reducing the protective performance of the connector.
Cable issue: The cable connecting the male end may be damaged, broken, or have internal wire breakage. Frequent bending, pulling, or vibration during vehicle operation can all cause cable damage. In addition, the insulation layer of the cable may also be damaged due to aging and wear, causing problems such as short circuits.
Electrical malfunction
Short circuit: Short circuits may occur between pins inside the connector due to insulation damage, foreign objects entering, and other reasons. For example, when the insulation material of the pins ages or peels off, or conductive substances such as metal debris enter the interior of the connector, it may cause the circuit between adjacent pins to conduct, resulting in abnormal signal transmission or vehicle electronic system failure.
Open circuit: The connection point between the pin and the cable may experience an open circuit due to poor soldering, loosening, or other reasons, or the pin itself may break, causing the circuit to be unable to conduct normally, resulting in the OBDII male connector being unable to transmit data to the vehicle.
Signal interference: If the shielding performance of the connector is poor or there are strong electromagnetic interference sources nearby, such as the engine ignition system, car radio, etc., it may cause interference to the signal transmitted by the OBDII male connector, resulting in data errors, loss, or unstable transmission.
Connection issues
Poor contact: The surface of the pin may form an insulation layer due to oxidation and dirt, which hinders the flow of current and increases contact resistance, resulting in unstable data transmission. At the same time, the fit between the connector and the vehicle OBDII interface may not be tight, and under the vibration during vehicle operation, it is easy to loosen, leading to poor contact.
Incorrect or reversed insertion: If the operator is not careful during connection, the OBDII male connector may be inserted into the wrong interface or in the wrong direction, which may damage the connector and vehicle OBDII interface, and even cause vehicle electronic system failures.
Performance malfunction
Data transmission error: Due to internal circuit faults, signal interference, or decreased electrical performance of the connector, errors may occur during the data transmission process, such as incorrect vehicle fault codes read by diagnostic equipment, inaccurate real-time data, etc., which affects the judgment and maintenance of vehicle faults.
Unstable transmission rate: Changes in the electrical performance of connectors, line losses, or electromagnetic interference can all cause unstable data transmission rates, resulting in sometimes fast and sometimes slow situations, leading to poor communication between diagnostic equipment and vehicles, increasing diagnostic time and difficulty.
