What are the detection methods for faults in automotive OBDII male connectors?

What are the detection methods for faults in automotive OBDII male connectors?

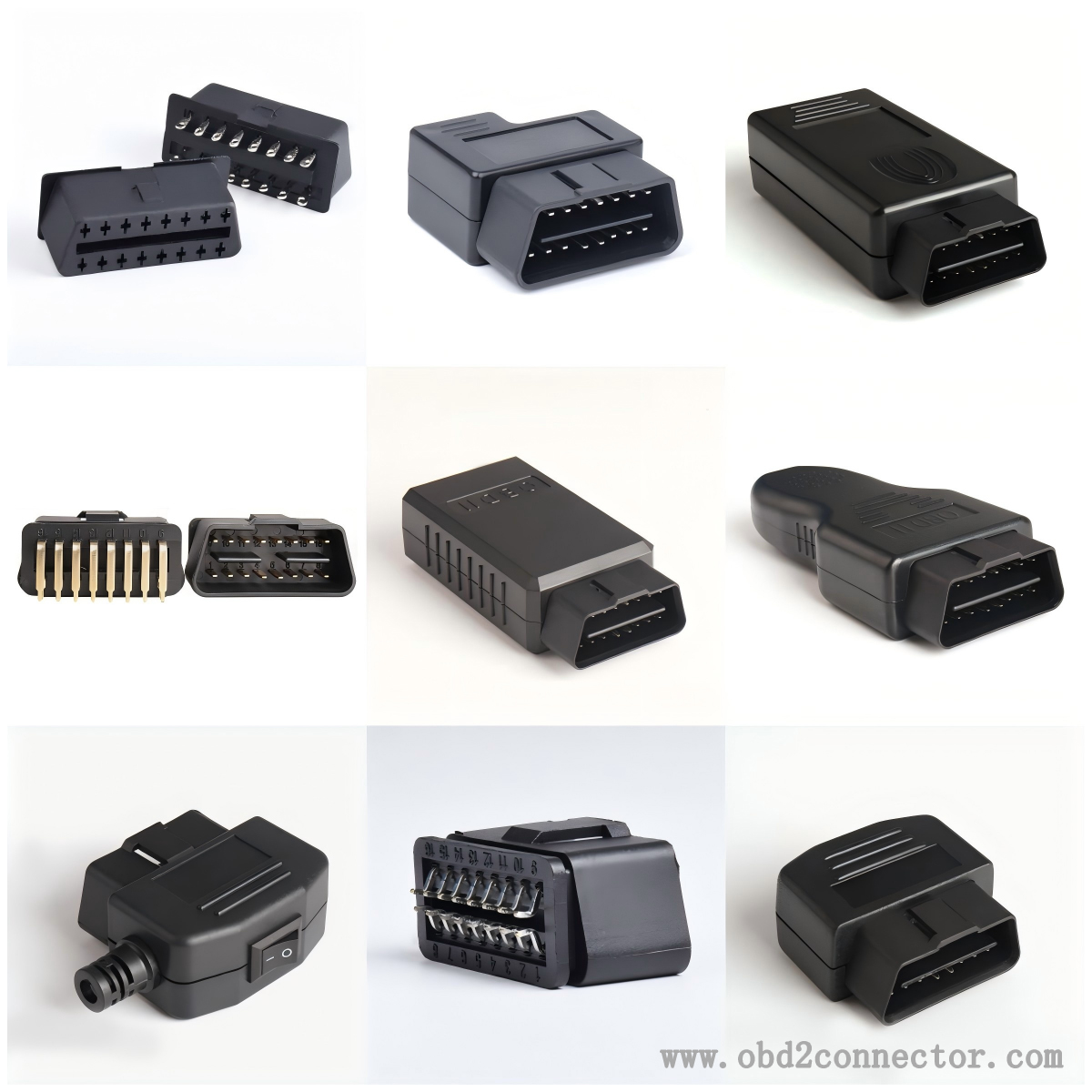

There are various methods for detecting faults in automotive OBDII male connectors, including visual inspection, electrical performance testing, connection testing, and functional testing. The following are specific detection methods:

VISUAL INSPECTION

Visual inspection: directly observe the overall appearance of the connector, check for cracks, damage, deformation, and obvious scratches, wear, or corrosion on the surface of the housing. Check whether the cable is damaged, broken, aged, hardened, peeled, and whether the connection between the cable and the connector is loose or cracked.

Pin inspection: Carefully inspect each pin for any bending, deformation, breakage, corrosion, or oxidation, check for dirt or debris adhering to the surface of the pins, and check for signs of short circuits between the pins, such as foreign objects or metal shavings connecting them.


Electrical performance testing

Resistance measurement: Use the resistance range of a multimeter to measure the resistance between the connector pins. Check if the resistance between each pin and the corresponding circuit is within the normal range to determine if there is an open or short circuit fault. For example, measuring the resistance between the power pin and the ground pin should normally be infinite. If there is a resistance value, there may be a short circuit.

Voltage measurement: Set the multimeter to the voltage range and measure the voltage between the power pin (such as PIN16) and the ground pin (such as PIN4 or PIN5) of the OBDII male connector with the vehicle power on. The vehicle's power voltage (usually 12V or 24V) should be measured. If the voltage value is abnormal, it may be due to poor contact of the power pin or internal circuit malfunction.

Oscilloscope detection: Connect the oscilloscope to the signal pin of the connector, start the vehicle and allow the diagnostic equipment to communicate with the vehicle. Observe the signal waveform displayed on the oscilloscope, check whether the shape, amplitude, frequency, etc. of the waveform meet the standards, and determine whether there are problems such as signal distortion and interference.

Connection testing

Insertion and extraction test: Insert the OBDII male connector into the vehicle's OBDII interface, then gently pull it out and feel if the insertion and extraction force is normal. If the insertion and extraction force is too loose or too tight, it may indicate a problem with the connector or vehicle interface. Perform multiple insertion and extraction operations to check if the connector can be smoothly inserted and removed, and if there are any jamming or obstruction.

Shake test: After inserting the connector into the vehicle interface, gently shake the connector and the cable connected to it, and observe whether the diagnostic equipment has data interruption, error or abnormal display. If such a situation occurs, it indicates that the connection of the connector may be unstable, with loose or poor contact issues.

functional testing

Diagnostic equipment testing: Connect the OBDII male connector to the vehicle's OBDII interface, and then connect it to the car diagnostic equipment. Through the diagnostic equipment, attempt to read the vehicle's fault codes and real-time data, such as engine speed, water temperature, exhaust emission data, etc. If the diagnostic equipment cannot establish communication with the vehicle, or if the data read is incomplete, inaccurate, or abnormal, after troubleshooting the diagnostic equipment itself, it may be a problem with the OBDII male connector.

Comparative testing: Use a known good OBDII male connector to connect the same vehicle and diagnostic equipment for testing, and compare the test results of the two connectors. If the suspected faulty connector is abnormal and a good connector tests normally, the location of the fault can be determined.

Active testing: Using the active testing function of diagnostic equipment, specific commands are sent to the vehicle through the OBDII male connector, such as controlling the action of engine fuel injectors, controlling throttle opening, etc., to observe whether the actual response of the vehicle is consistent with the commands. If the vehicle does not respond or responds abnormally, it may be due to a faulty connector.
