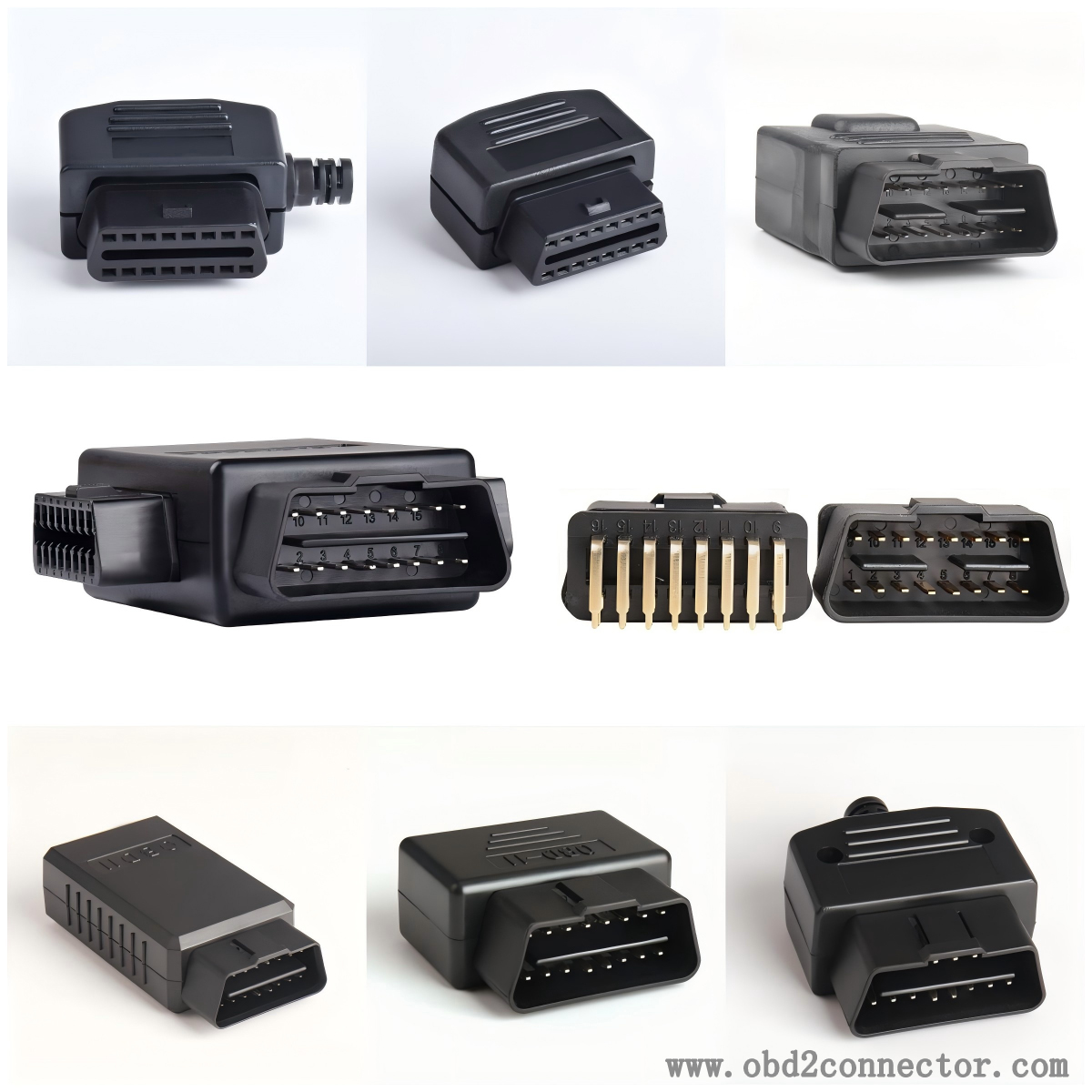

Common faults and inspection methods of OBD2 female connector
What are the common faults of OBD2 female connector? Is there any way to check?
Common faults
Physical damage: The plastic casing of the interface may break, and the pins may bend, resulting in the inability to connect properly with the male connector or damage to the device connected to it.
Poor contact: The surface of the pin is oxidized or dirty, or the contact between the pin and the male head is unstable due to vehicle vibration, which can affect data transmission.
Electrical malfunction: Internal circuits may experience open or short circuits, resulting in inability to supply power or abnormal data transmission; It may also cause errors or instability in the transmitted signal due to electromagnetic interference.
Communication issue: If the protection function of the vehicle ECU is not activated or the wiring of the female connector does not comply with national standards, it will cause communication failure.
Fault detection methods
Appearance inspection: Check whether the shell is cracked or deformed, whether the pins are bent, corroded, oxidized or dirty, and whether there is dust or debris inside the interface.
Electrical performance test: Use a multimeter to measure whether the voltage between the power pin (PIN16) and the ground pin (PIN4 or PIN5) is normal; Measure the resistance between each pin and check for short circuits or open circuits; Use an oscilloscope to check if the signal waveform of the signal pin is normal.
Connection test: Check whether the insertion and removal of the male connector are smooth, and whether the insertion and removal force is normal; Gently shake after insertion to observe for any data interruption or unstable connection.
Functional testing: Connect diagnostic equipment and attempt to read vehicle fault codes and real-time data to see if communication can be normal and accurate data can be obtained; Utilize the active testing function of diagnostic equipment to send instructions to the vehicle and observe whether the vehicle's response is normal.
