How to determine if the new OBD2 female connector is compatible with the vehicle when replacing it?
When replacing the OBD2 female connector, the compatibility of the new connector with the vehicle can be determined by checking the specifications, matching the vehicle system, and other aspects. The following are the specific methods:
View specification parameters

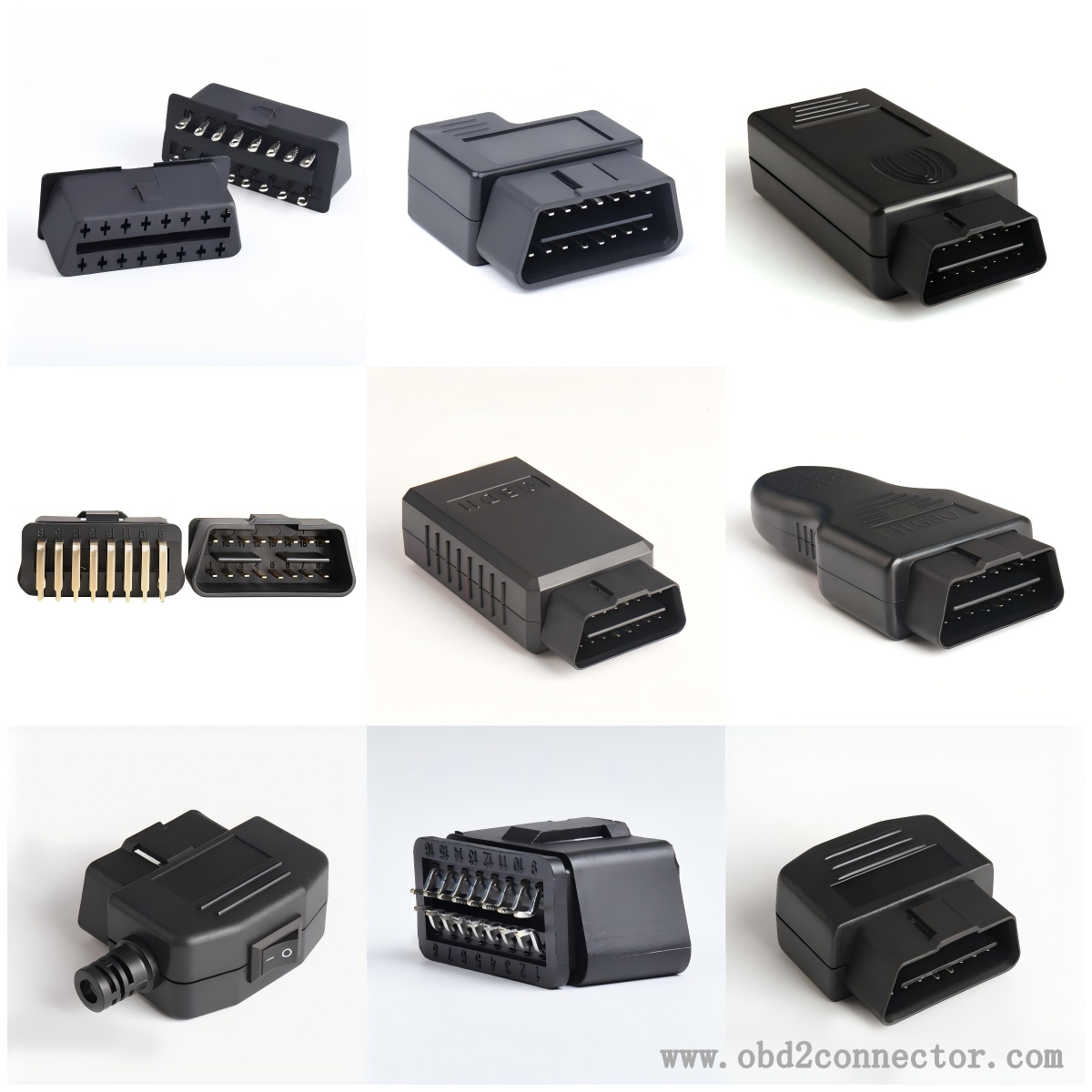

Interface shape and size: The OBD2 female connector is generally a trapezoidal 16 pin interface, but there may be slight differences in some special vehicle models. Ensure that the shape and size of the new connector are exactly the same as the original vehicle, and can be perfectly connected to the OBD interface on the vehicle without any looseness or inability to insert.
Pin definition: The 16 pins of the OBD2 interface have specific functions, such as power supply, grounding, signal transmission, etc. The pin definition of the new connector must match exactly with the pin definition of the vehicle's OBD system to ensure the normal implementation of various functions, such as the CAN-H and CAN_L signal pins, which must be connected correctly to the corresponding pins of the vehicle's CAN bus system.
Electrical parameters: including operating voltage, current, resistance, and other parameters. The electrical parameters of the new connector should be consistent with the requirements of the vehicle's OBD system, such as a working voltage of 12V or 24V, which should be consistent with the voltage of the vehicle's electrical system, otherwise it may not work properly or damage the vehicle's equipment.
Matching vehicle system
Vehicle brand and model: Different brands and models of vehicles may have differences in their OBD systems. The appropriate connector should be selected based on the specific brand and model of the vehicle. You can refer to the vehicle user manual or consult the car dealer.
Communication protocol: The new connector needs to support the communication protocol used by the vehicle, otherwise it cannot exchange data with the vehicle ECU normally. It can be determined by querying vehicle technical information or using diagnostic equipment to test the vehicle communication protocol.
