Types and characteristics of OBD2 connectors
There are several types of OBD2 connectors, each with its unique characteristics:

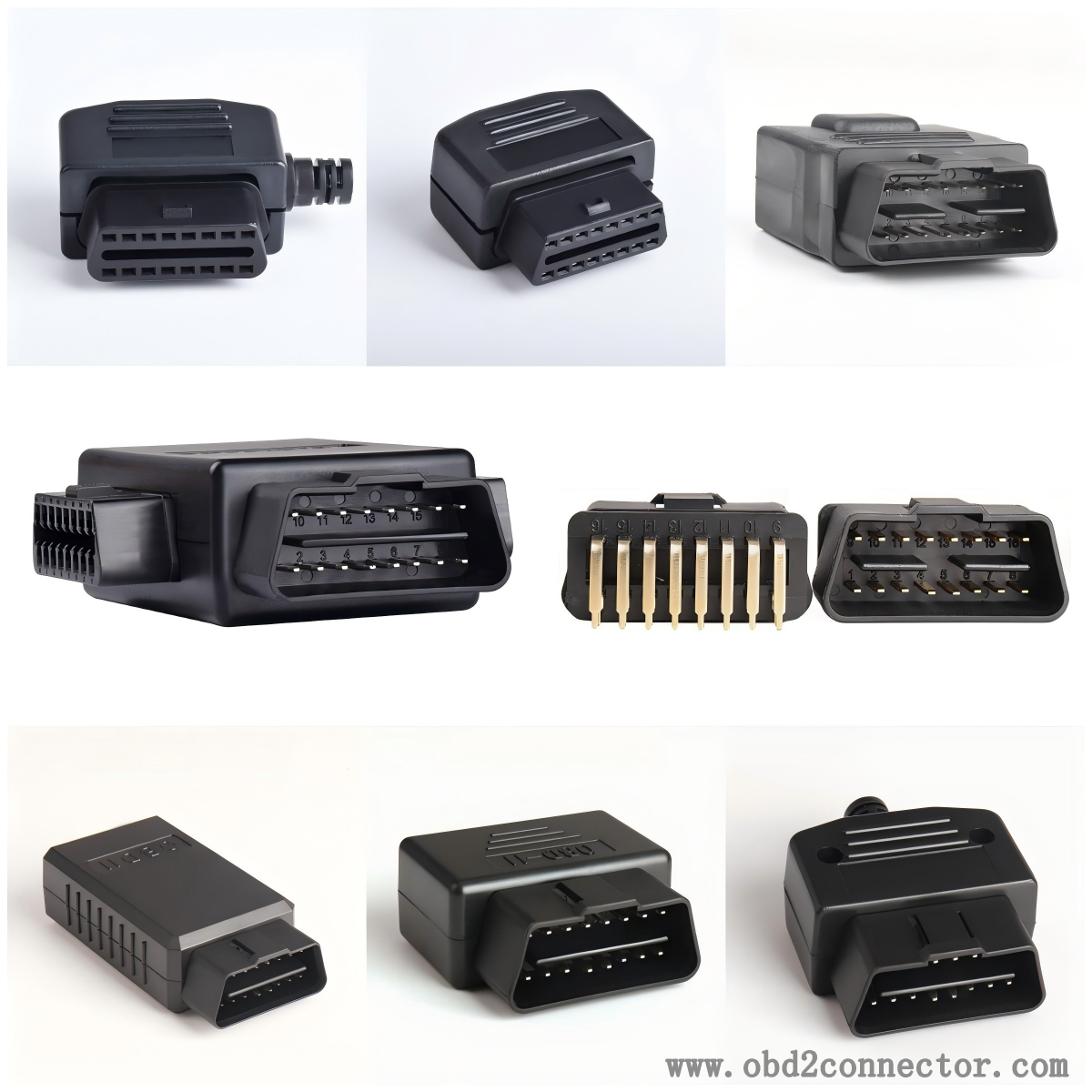

Standard OBD2 connector
Characteristic: This is the most common type and complies with the internationally unified OBD2 standard. It has a 16 pin universal interface that is compatible with various OBD2 compliant vehicles and diagnostic devices. The size, shape, and pin definitions of this connector are standardized, ensuring interchangeability and universality between vehicles and diagnostic tools produced by different manufacturers.
Application scenarios: Widely used in various passenger cars, light commercial vehicles, etc., it is the most commonly used connector type in car repair shops, car testing institutions, and when car owners use diagnostic equipment themselves.
Bluetooth OBD2 connector
Features: Based on the standard OBD2 connector, it integrates a Bluetooth wireless communication module. It can connect to mobile phones, tablets, or other Bluetooth enabled devices through Bluetooth technology to achieve wireless data transmission. Users do not need to use wired connections, making operation more convenient and avoiding the limitations of cables on operating space.
Application scenario: Suitable for car owners who want to monitor the vehicle status, read fault codes, and other situations at any time through mobile devices. It also facilitates diagnostic operations for car maintenance personnel when moving around the vehicle flexibly, without being limited by cable length.
WiFi OBD2 connector
Features: Similar to Bluetooth OBD2 connector, but using WiFi wireless communication method. WiFi has higher data transmission rates and longer transmission distances, enabling faster transmission of large amounts of vehicle diagnostic data, and can connect with WiFi enabled devices over a relatively large range.
Application scenarios: It is more suitable for situations that require large amounts of data transmission and real-time monitoring, such as the R&D and testing departments of automobile manufacturers, large fleet management systems, etc., which can meet the needs of efficient collection and analysis of vehicle data.
OBD2 connector with display screen
Features: This connector integrates a small display screen, which can directly display some basic information of the vehicle, such as vehicle speed, engine speed, water temperature, fault codes, etc. Without the need for additional equipment, users can intuitively obtain key vehicle data on the connector, which is convenient and fast.
Application scenario: Suitable for users who do not require complex diagnostic functions and only want to have a simple understanding of the real-time status of the vehicle, such as ordinary car owners who can check the basic information of the vehicle at any time during daily driving, or for some occasions where the vehicle status is preliminarily monitored.
Professional diagnosis of OBD2 connector
Characteristics: Usually produced by car manufacturers or professional car maintenance equipment manufacturers, it has stronger diagnostic functions and higher performance. It can support more detailed vehicle system diagnosis, including some special functions such as in-depth testing and programming of vehicle anti-theft systems, electronic suspension systems, etc. At the same time, professional diagnostic OBD2 connectors may have higher communication rates and more stable connection performance to meet the needs of professional maintenance personnel for complex fault diagnosis and repair.
Application scenarios: Mainly used in car 4S stores, professional car repair shops, and other places, it is used by professionally trained technicians to provide comprehensive and in-depth fault diagnosis and maintenance services for various brands and models of vehicles.
