In the automotive diagnostic system, the OBD2 connector serves as a key hub connecting diagnostic equipment with the vehicle's electronic control unit (ECU), and its quality directly affects the accuracy and stability of diagnosis. But facing the dazzling array of OBD2 connector products on the market, how to judge their quality has become a key concern for car owners and maintenance personnel.

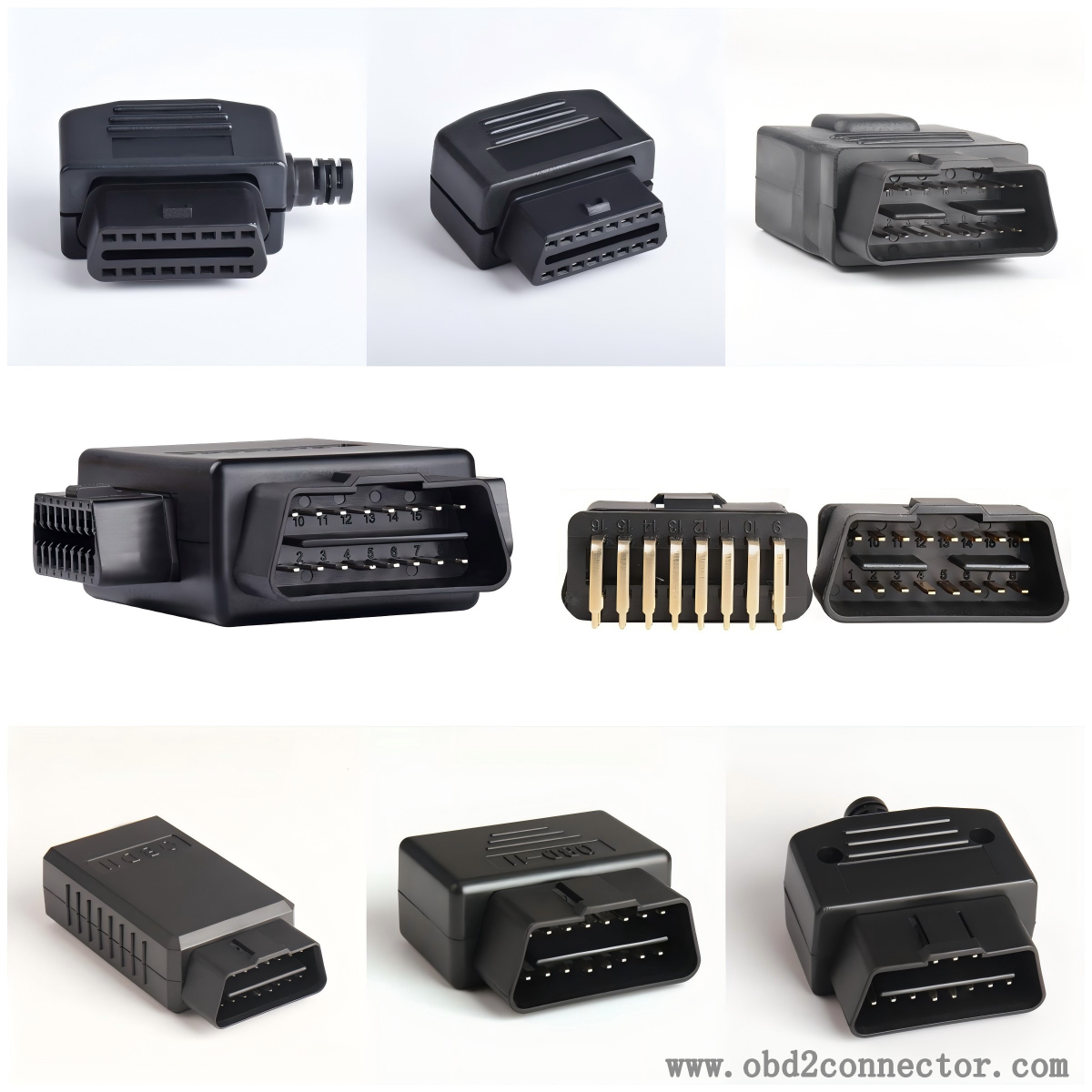

From the perspective of appearance and craftsmanship, high-quality OBD2 connector housings should have uniform texture, no burrs or defects. The injection molding process is fine, with rounded and smooth edges and corners, without rough injection marks. The color is usually uniform and textured. The pin part is arranged neatly, without any skewness, deformation, or uneven length. The surface coating is bright and uniform, which can effectively prevent oxidation and corrosion. On the other hand, for inferior products, the shell may have obvious splicing gaps, dull or uneven color, and the stitches may be uneven, even showing signs of looseness.
Material selection is also a key factor in measuring quality. The housing of connectors is often made of engineering plastics, and high-quality products will use materials with good insulation, high temperature resistance, and wear resistance, such as PA66 (polyamide 66). This material can maintain stable performance in complex automotive environments and is not easily aged or deformed after long-term use. The pins are generally made of copper alloy material. High quality copper alloy not only has good conductivity, but also has certain strength and toughness to ensure reliable electrical connections. If the shell material is found to be thin and brittle, or the pin material is soft and prone to bending, it is likely to be a product of poor quality.
Electrical performance is the core consideration indicator. Through professional electrical testing equipment, the resistance, insulation resistance, and withstand voltage performance of connectors can be tested. Under normal circumstances, the contact resistance of the OBD2 connector should be extremely low, generally in the milliohm range, in order to ensure efficient signal transmission and reduce signal attenuation. The insulation resistance should reach the megaohm level or above to prevent leakage and short circuit situations and ensure electrical safety. The withstand voltage performance also needs to comply with relevant standards and be able to withstand a certain voltage without being broken down. If excessive resistance, poor insulation, or insufficient withstand voltage are found during testing, the quality of the connector must be problematic.
Compatibility cannot be ignored either. Good quality OBD2 connectors can be stably connected to various diagnostic equipment and vehicles that meet standards, without problems such as unstable connections or data transmission errors. When purchasing, you can understand the compatibility range of the product, or through actual testing, connect different brands and models of vehicles and diagnostic equipment, and observe their connection and data transmission.
Judging the quality of OBD2 connectors requires comprehensive consideration of multiple factors. From appearance craftsmanship to material selection, to electrical performance and compatibility testing, only through comprehensive evaluation can reliable products be selected, providing strong support for automotive diagnostic work.
