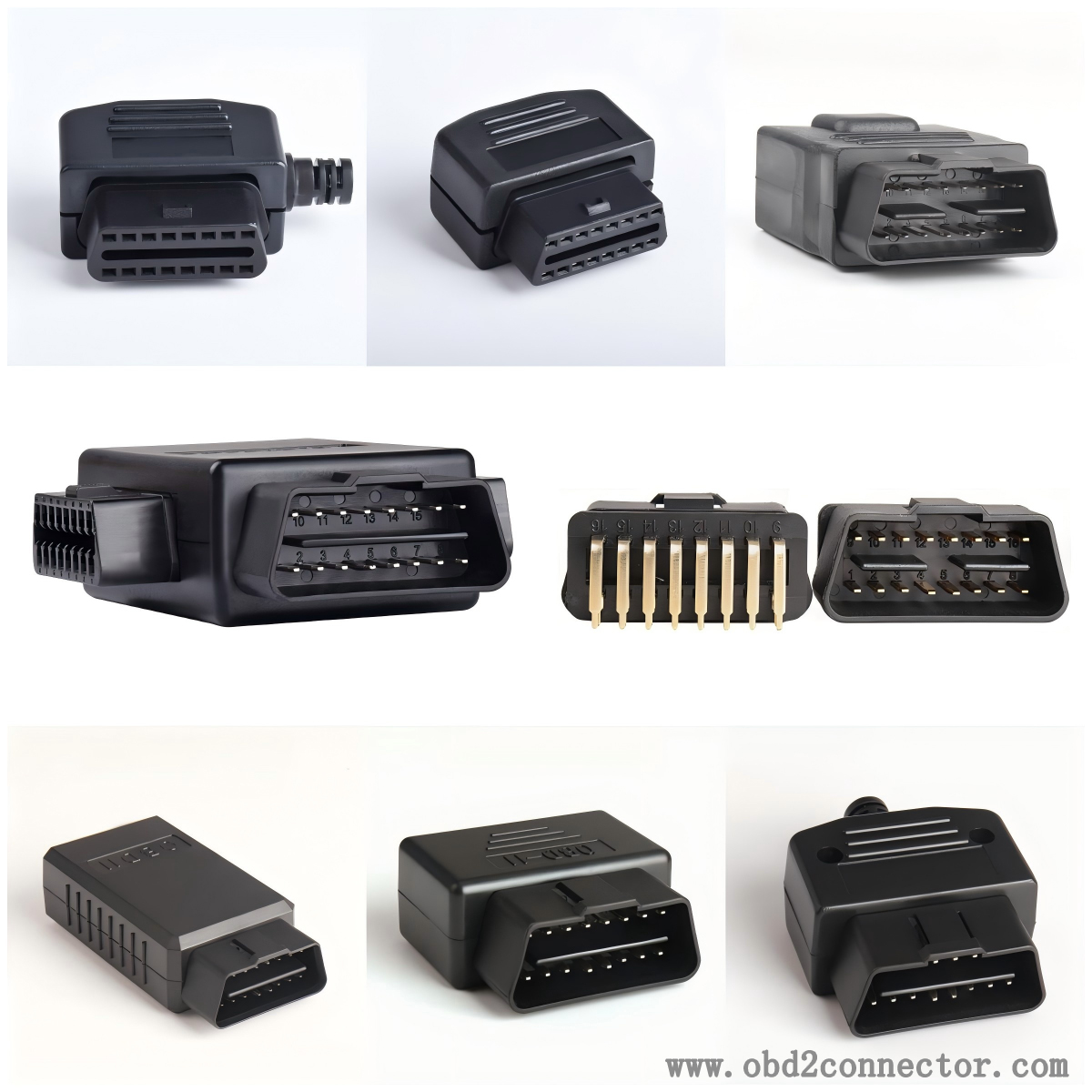

How to correctly use OBD2 female connector for automotive fault diagnosis?
To diagnose automotive faults using the OBD2 female connector, the following steps can be followed:
preparation
Confirm vehicle compatibility: Ensure that your vehicle supports OBD2 standards.
Choose appropriate diagnostic equipment: Based on your needs and budget, choose a diagnostic tool that is compatible with OBD2, such as a universal automotive fault diagnosis instrument or a specialized diagnostic equipment suitable for specific vehicle models. Some smartphone applications can also achieve basic diagnostic functions when paired with Bluetooth OBD2 adapters.
Connected Device
Find the OBD2 interface to connect the diagnostic device: Connect the OBD2 female connector to the male plug of the diagnostic device, ensuring a secure connection and avoiding looseness. If using a Bluetooth adapter, plug it into the OBD2 interface and pair it with Bluetooth through a phone or other device.
Diagnostic Operations
Read fault code: On the operation interface of the diagnostic equipment, select "Read fault code" or similar function options. The device will read the stored fault codes from the vehicle's electronic control unit (ECU) and display them on the screen. Fault codes are usually composed of letters and numbers, with each code corresponding to specific fault information.
Analyze the fault code: Based on the meaning of the fault code and the actual symptoms of the vehicle, preliminarily determine the possible cause of the fault.
Further testing: For some complex faults, relying solely on fault codes may not accurately determine the fault point. At this point, other functions of the diagnostic device can be used, such as reading real-time data, performing component testing, etc.
Clear fault codes and records
Clear fault codes: After repairing the fault, use the "Clear Fault Code" function of the diagnostic equipment to clear the fault codes stored in the vehicle ECU. After clearing, restart the vehicle and observe if the fault occurs again. If the fault still exists, it indicates that there may be other undiscovered issues that require further investigation.
Record and report: Record the fault codes, related data, and repair process obtained during the diagnostic process for future reference. If it is necessary to send the vehicle to a professional repair shop or 4S store for maintenance, providing these records to the maintenance personnel can help them understand the vehicle's fault situation more quickly and improve maintenance efficiency.
When using the OBD2 female connector for automotive fault diagnosis, it is important to ensure correct operation to avoid equipment damage or exacerbation of vehicle faults caused by misoperation. If the diagnostic results are uncertain or unfamiliar with automotive repair knowledge, it is recommended to seek the help of professional automotive repair personnel.
