The difference and function between OBD2 male connector and OBD2 female connector

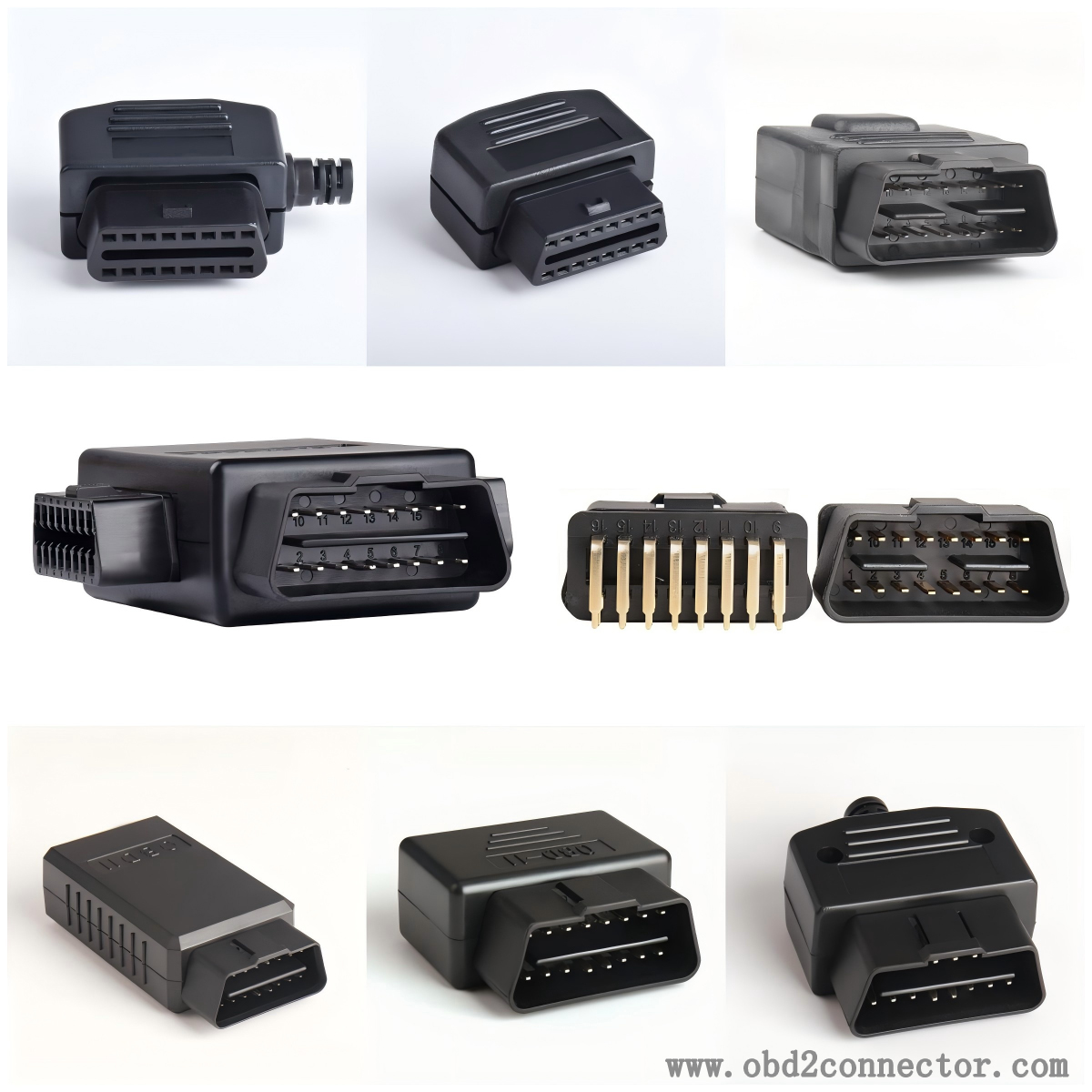

There are some differences between OBD2 male connectors and OBD2 female connectors in terms of structure, application scenarios, and functions, as follows:
Structure Design
Male head: usually has protruding pins that are used to insert into the corresponding sockets of the female head to achieve electrical connection. The appearance of a male head is generally compact, making it easy to connect with various diagnostic equipment or connecting wires.
Female head: There is a socket that matches the male head pin, and there are spring plates or other contact devices inside to ensure close contact with the male head pin and ensure the stability of signal transmission. The female head is generally integrated into the OBD2 interface module of the vehicle, usually designed in a trapezoidal shape with anti misoperation function, which can prevent short circuits or vehicle damage caused by incorrect insertion.
Application scenarios
Public head: commonly used on diagnostic equipment, scanning tools, extension cords, or other external devices that need to be connected to the vehicle OBD2 interface. For example, professional diagnostic equipment used in car repair shops, OBD2 scanning tools purchased by car owners, etc., usually have a male connector connected to the vehicle.
Mother head: fixedly installed on the vehicle, usually located in the interior panel below the steering wheel near the driver's knee. Some models may also be located near the glove box or other easy to connect data cables, making it convenient for maintenance personnel or car owners to connect external devices for vehicle diagnosis and data reading.
role
Public Head: As the initiator of the connection, it connects the signal transmission line of external devices to the corresponding line of the vehicle OBD2 system, enabling the diagnostic equipment to obtain real-time data, fault codes, and other information of the vehicle. At the same time, it can also transmit instructions from external devices to the vehicle system, realizing the detection, debugging, or configuration changes of certain functions of the vehicle.
Mother Head: As the output interface of the vehicle OBD2 system, it provides an access point for external devices, transmits data from the vehicle's electronic control unit (ECU) to external connected devices through specific pins, and receives instructions and signals sent by external devices, achieving bidirectional communication between the vehicle and external devices. It is a key channel for vehicle diagnosis and data exchange.
The combination of male and female heads enables reliable connection and data communication between the vehicle OBD2 system and external diagnostic equipment, playing a crucial role in vehicle fault diagnosis, performance monitoring, maintenance, and personalized settings.
